HS-6201C
HCCTG

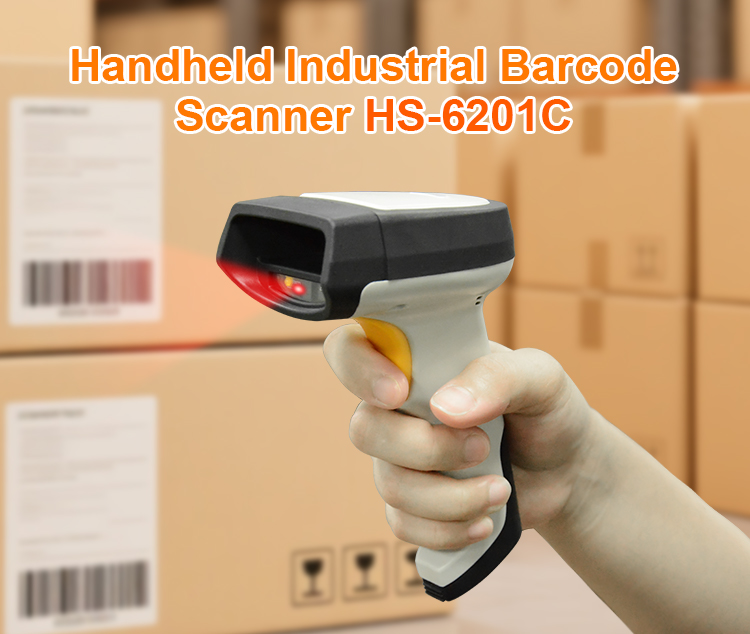

High Performance Passport MRZ OCR 2D Bar Code Reader Handheld Barcode Scanner Gun HS-6201C
Passport Scanner For Airport Check in
Today many airports pursues innovation and excellence in passenger services. Self check-in kiosks are to enable the passengers to get through the automated access control check-in kiosks instead of turning to the airport check-in counter. The kiosk passport reader is an integral part to read the passenger’s personal information which will be uploaded into the border control administration system.
HS-6201C is designed for this purpose.
Specifications:
Performance parameters | |
CMOS | CMOS |

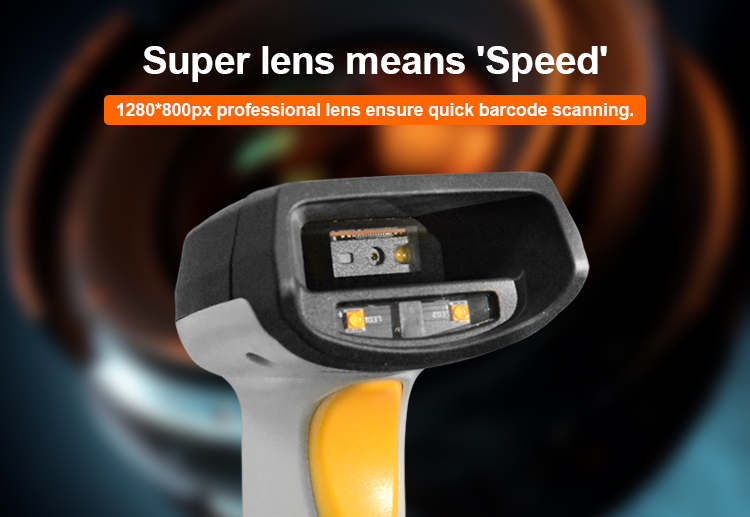

Resolution | 1280 pixels(H) * 800 pixels(V) |
Floodlight | White LED |
Aiming light | 650nm laser |

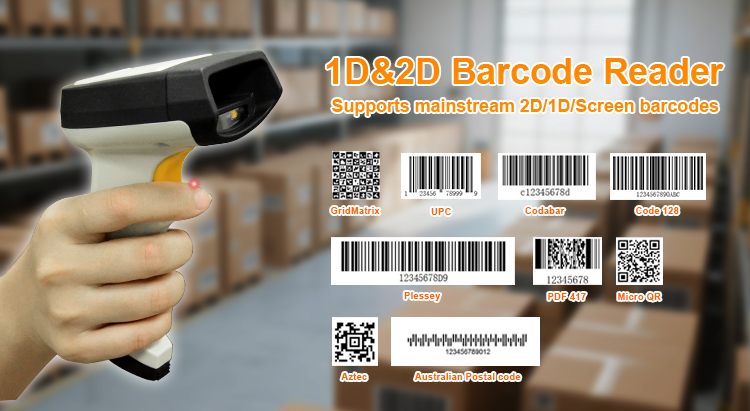

Readable code system | 1D:EAN, UPC, Coupon, GS1 Composite, CodaBar,Interleaved 25/ITF-14/ITF6, Matrix25, Industrial 25, COOP 25, Standard 25, China post25, Code39, Code93 / Code93i, Code 128 series,Plessey, MSI Plessey, Code11, RSS, Code 49, Code 16K |
2D:PDF417, Micro PDF417, QR/ Micro QR, Data Matrix,Aztec, Chinese Sensible Code, MaxiCode, GridMatrix, Code One, DotCode | |
Postal:USPS Postnet, USPS Intelligent Mail, Royal Mail, USPS Planet, KIX, Australian Postal, Japanese Post | |

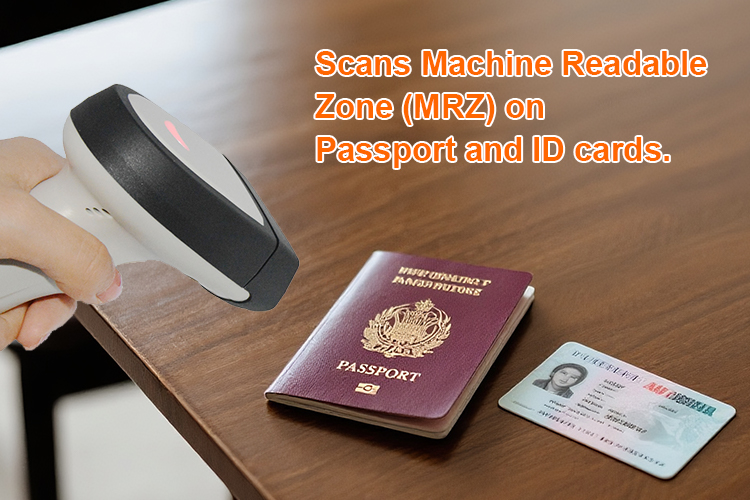

OCR:Passport OCR, Passport Visa, TD1, TD2, etc. | |
Accuracy | ≥3mil |
Contrast ratio | ≥25% |
Field of view angle | Level: 42° vertical: 28° diagonal: 50° |
Scanning depth of field | EAN13: 13mil 70-500mm Code 39: 5mil 90-265mm QR code: 15mil 40-295mm Data Matrix: 15mil 65-215mm |
Prompt mode | Buzzer, LED lights |
Data interface | USB keyboard, Vcom, HID POS, RS232, TTL |
Electrical parameters | |
Voltage of operation | 5V ± 3% |
Current of operation | 269mA |
Standby current | 70mA |
Environmental parameters | |
Working temperature | -10℃ ~ +50℃ |
Storage temperature | -40℃ ~ +60℃ |
Relative humidity | 5% ~ 95%(RF) |
Ambient light intensity | 0~100,000Lux |
Physical parameters | |

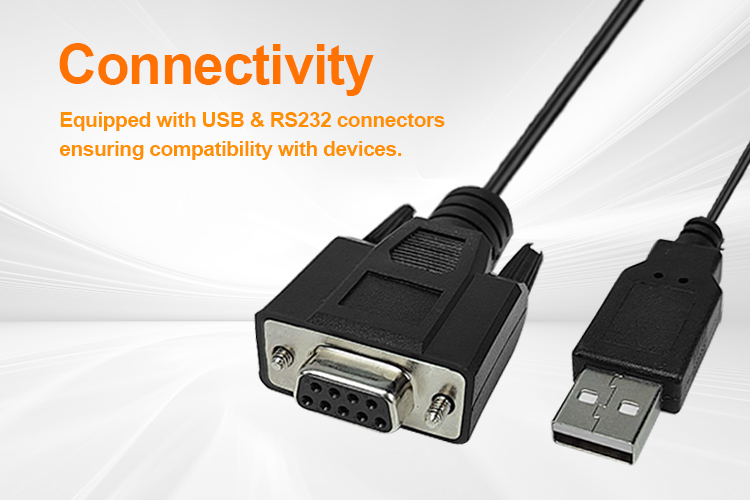

Cable standards | USB, RS 232, TTL |

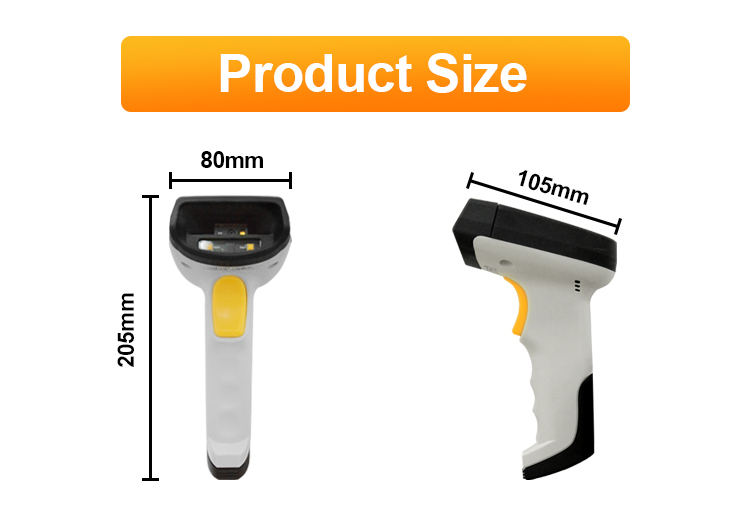

Product | Size: 72.7(W) * 102.7(D) * 162.5(H)(mm) Weight: 252g (including 2 m data line) |
High Performance Passport MRZ OCR 2D Bar Code Reader Handheld Barcode Scanner Gun HS-6201C
Passport Scanner For Airport Check in
Today many airports pursues innovation and excellence in passenger services. Self check-in kiosks are to enable the passengers to get through the automated access control check-in kiosks instead of turning to the airport check-in counter. The kiosk passport reader is an integral part to read the passenger’s personal information which will be uploaded into the border control administration system.
HS-6201C is designed for this purpose.
Specifications:
Performance parameters | |
CMOS | CMOS |
Resolution | 1280 pixels(H) * 800 pixels(V) |
Floodlight | White LED |
Aiming light | 650nm laser |
Readable code system | 1D:EAN, UPC, Coupon, GS1 Composite, CodaBar,Interleaved 25/ITF-14/ITF6, Matrix25, Industrial 25, COOP 25, Standard 25, China post25, Code39, Code93 / Code93i, Code 128 series,Plessey, MSI Plessey, Code11, RSS, Code 49, Code 16K |
2D:PDF417, Micro PDF417, QR/ Micro QR, Data Matrix,Aztec, Chinese Sensible Code, MaxiCode, GridMatrix, Code One, DotCode | |
Postal:USPS Postnet, USPS Intelligent Mail, Royal Mail, USPS Planet, KIX, Australian Postal, Japanese Post | |
OCR:Passport OCR, Passport Visa, TD1, TD2, etc. | |
Accuracy | ≥3mil |
Contrast ratio | ≥25% |
Field of view angle | Level: 42° vertical: 28° diagonal: 50° |
Scanning depth of field | EAN13: 13mil 70-500mm Code 39: 5mil 90-265mm QR code: 15mil 40-295mm Data Matrix: 15mil 65-215mm |
Prompt mode | Buzzer, LED lights |
Data interface | USB keyboard, Vcom, HID POS, RS232, TTL |
Electrical parameters | |
Voltage of operation | 5V ± 3% |
Current of operation | 269mA |
Standby current | 70mA |
Environmental parameters | |
Working temperature | -10℃ ~ +50℃ |
Storage temperature | -40℃ ~ +60℃ |
Relative humidity | 5% ~ 95%(RF) |
Ambient light intensity | 0~100,000Lux |
Physical parameters | |
Cable standards | USB, RS 232, TTL |
Product | Size: 72.7(W) * 102.7(D) * 162.5(H)(mm) Weight: 252g (including 2 m data line) |
