HS-2010MRZ
HCCTG

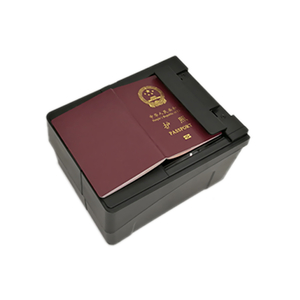

OCR MRZ 2D Barcode Scanner Biometric Passport Reader HS-2010MRZ
It support a variety of data modes, compatible with win XP, win7, win10, IOS, Android, industrial PC, server and other devices, plug and play, simple and convenient.
HCCTG's MRZ Scanner SDK is designed to capture and extract user's information from machine-readable travel documents, especially passports. Its sophisticated MRZ localization and decoding algorithms provide enterprise-grade accuracy and speed. Our passport scanner SDK delivers high performance under various usage scenarios.
Application:
Airport, customer service desk, ticket/check window, chain retail, inventory management, warehousing logistics, manufacturing, O2O application venues and other types of scenes, etc.
Specification:
Performance parameters | |
Resolution | 1280 pixels(H) x 800 pixels(V) |
Floodlight | Warm white LED |
Aiming light | Red Cross laser 650nm |
Readable code system | 1D: EAN, UPC, Coupon, GS1 Composite, CodaBar, Interleaved 25/ITF-14/ITF6, Matrix 25, Industrial 25, COOP 25, Standard 25, China post 25, Code 39, Code 93/Code 93i, Code 128 series, Plessey, MSI Plessey, Code11, RSS, Code 49, Code 16K |
2D: PDF417, Micro PDF417, QR/ Micro QR, Data Matrix, Aztec, Chinese Sensible Code, MaxiCode, GridMatrix, Code One, DotCode | |
Postal: USPS Postnet, USPS Intelligent Mail, Royal Mail, USPS Planet, KIX, Australian Postal, Japanese Post | |
OCR: Passport OCR, Passport Visa, TD1, TD2, etc. | |
Accuracy | ≥3mil |
Contrast ratio | ≥25% |
Field of view angle | level:42° vertical:28° diagonal:50° |
Scanning depth of field | EAN13 13mil 70-500mm Code 39 5mil 90-265mm QR code 15mil 40-295mm Data Matrix 15mil 65-215mm |
Prompt mode | Buzzer, LED lights |
Data interface | USB keyboard, Vcom, HID POS, RS232, TTL, RS485 |
Electrical parameters | |
Voltage of operation | 5V±3% |
Current of operation | 290mA |
Standby current | 70mA |
Environmental parameters | -20℃ ~ +60℃ |
Working temperature | -40℃ ~ +70℃ |
Storage temperature | |
Relative humidity | 5% ~ 95%(RF) |
Ambient light intensity | 0~100,000Lux |
Physical parameters | |
Cable standards | USB, RS 232, TTL, RS485 |
