HCC-K38 supports max 108mm printing width and adjustable mini size 38mm, USB and Bluetooth interface can be choose.
Availability: | |
---|---|
Quantity: | |
HCC-K38
HCCTG

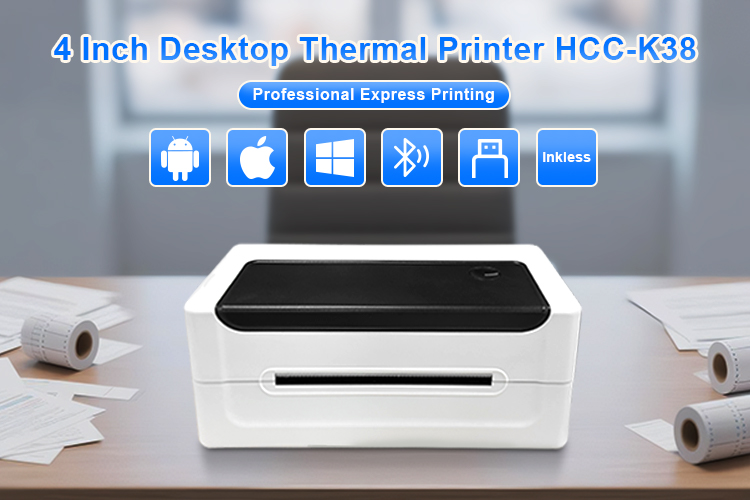

4 Inch 180mm/s Printing Speed Label Printer for Shipping Label HCC-K38
Streamline your shipping process with the HCC-K38, an innovative 108mm Thermal Label Printer meticulously designed to cater to your label printing requirements. This cutting-edge printer, compatible with Windows, MAC, iOS, and Android systems, offers unparalleled versatility and accessibility.
With its seamless integration across various platforms, the HCC-K38 enables you to print labels with ease. The printer comes with free apps for iOS and Android, allowing you to print labels on the go, without any hassle. Whether you're at the office or on the move, the HCC-K38 ensures that you can effortlessly meet your shipping label needs, in a time-efficient manner.
Features
Max 108mm printing width and adjustable mini size 38mm
Support continuous paper, label paper, folded paper, tag paper
Support Windows, MAC, IOS, Android system.
High-quality printing and low cost
Low noise and high-speed printing
Support multiple instruction sets TSPL, ZPL
Low power consumption and low operating costs (No Ribbons or Ink artridges )
Fashionable design, splendid quality
High-speed printing, high performance
Usb and Bluetooth interface can be choose.
Specification
Printing | |
Printing Method | Thermal Line |
Resolution | 203 dpi; Optional 300 dpi |
Print Instruction | Tspl (Customizable Cpcl / Zpl / Ep) |

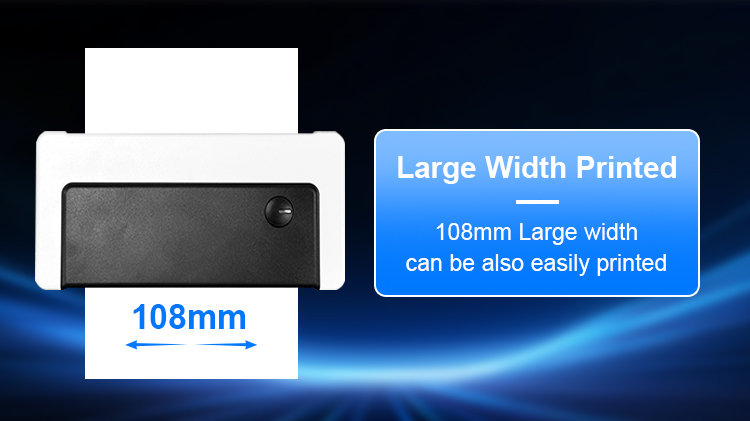

Print Width | 108 mm |

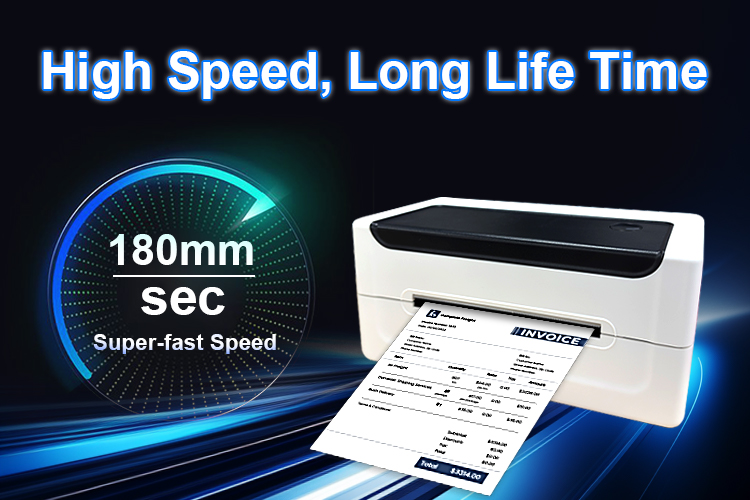

Printing Speed | 180mm/s |
Print Head Life | 50 Km (Label Paper); 150 km (Continuous Paper) |
Operating Platform | USB Version: Windows / Linux / Mac OS Bluetooth Version: Windows / Android / iOS |
RAM Memory | 2 Mb |
ROM Flash | 2 Mb (USB Version); 4 Mb (Bluetooth Version) |

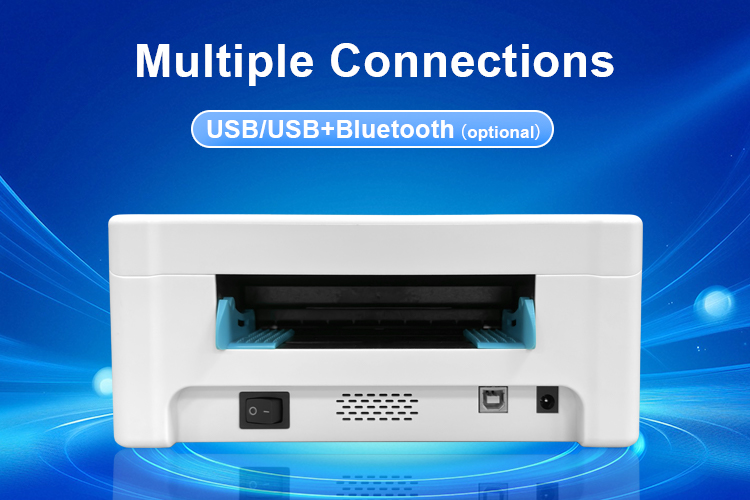

Connection Method | USB / USB + Bluetooth (Wifi Can Be Customized) |
Opening Method | Side Button Toggle |
Heating Head Temperature Detection | Thermistor |
Printing Paper | |
Paper Type | Label Paper, Continuous Paper, Black Label Paper, Stacked Paper |
Paper Loading Method | Easy Paper Loading / Automatic Feeding |
Paper Width | 38 - 120 mm |
Label Height | Minimum 30 mm; Maximum 250 mm |
Label Width | Minimum 38 mm; Maximum 112 mm |
Media Thickness | 0.06 - 0.18 mm |
Paper Cutting Method | Paper Cutting Method |
Axis Detection Method | Mechanical Detection Switch |
Out Of Paper Detection | Optocoupler |
Print Function | Automatic Paper Recognition, Intelligent Paper Return And Suction, Reprint For Lacking Paper, Defective Pixel Detection And Other Functions |

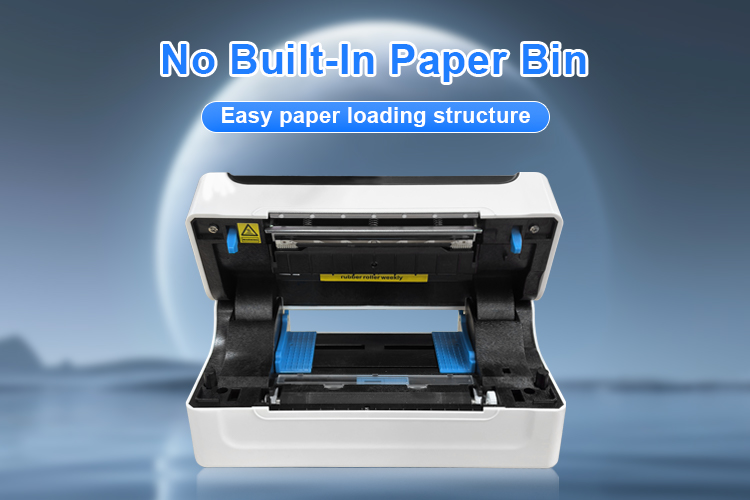

Paper Bin Type | No Built-In Paper Bin (Paper Stand Optional) |
Barcode Printing | |
Support Language | Support Most Languages, Individual Languages Need To Be Customized |
Character | Standard GB18030 Simplified Chinese |
Character Size | Ascii Font a: 12 * 24 Chinese Characters: 24 * 24 |
Extended Character Table | Cp437, Cp850, Cp852, Cp860, Cp863, Cp865, Cp866, Wpc1250, Wpc1251, Wpc1252, Wpc1253, Wpc1254 |
Barcode Type | One-Dimensional Code: Code 39, 39c, i25, Code 93, Itf25,Ean128, Code 128, Codabar, Ean-8, Ean8+2, Ean8+5, Ean-13, Ean13+2, Ean13+5, Upc-a, Upca+2, Upca+5, Upc-e, Upce+2, Upce+5 Msic, Itf14, Ean14, Code11, Post QR Code: Qrcode, Pdf417 (Optional) |
Font And Barcode Rotation | Supports |
Key Parameters | |
Key Operation | Power Button (Black Power Button On The Rear Side) Lid Opening Button (Opening Button On Both Sides) Feed Key (Black Feed Key Above) |
Key Operation Function In This Scenario | 1. Turn Off, Long Press Feed Key And Power Key : Self-Check Page Printing 2. Standby, Long Press Feed Key For 3 Seconds: Enter The Face-Sheet Learning Mode 3. Open Lid And Press Feed Key For 10 Seconds: Restore Factory Settings 4. Standby, Short Press Feed Key: Automatically Enter a Blank Sheet 5. During Continuous Printing, Short Press Feed Key: Printing Pauses 6. Pause Printing, Short Press Feed Key: Continue Printing |
Indicator Status Description | The Indicator Light Keeps On: Normal Standby Indicator Light Flashes: Buzzer Alarm |
Buzzer Alarm Prompt | 2 Beeps: Printer Head Error 3 Beeps: Lacking Paper 5 Sounds: Overheating Error 6 Sounds: Wrong Opening 7 Sounds: Wrong Stitch Mark |
