ACR1555U
HCCTG

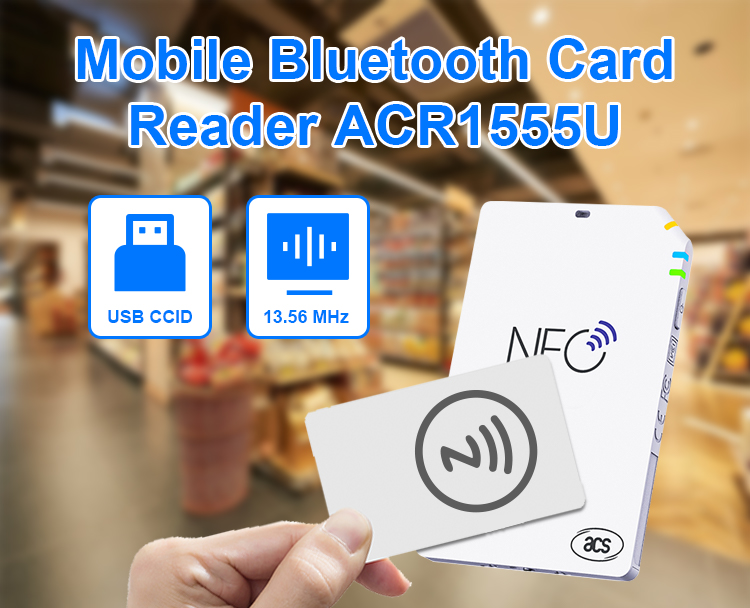

Mobile NFC Card Reader on-the-go ISO 14443 Contactless Reader ACR1555U
General:
ACR1555U supports ISO 14443 Type A and B smart cards, MIFARE®, FeliCa®, and most NFC tags and devices compliant with ISO 18092 standard. This makes ACR1555U ideal for a broad range of solutions, such as hands-free verification for physical and logical access control, and inventory tracking. ACR1555U has two interfaces: Bluetooth 5.2 (also known as Bluetooth Low Energy or BLE) for pairing with mobile devices, and USB Full Speed for PC-linked operation. Additionally, it can read/write at a speed of up to 848 kbps for contactless smart card and NFC device access.
With a compact design and a rechargeable Lithium-ion battery for power, ACR1555U is extremely portable and convenient for use anytime, anywhere with most Bluetooth-enabled smartphones and tablets.
Features:
Supports Bluetooth® HID mode
Support Bluetooth® AES-128 encryption
High speed transmission up to 2 Mbps
ISO 14443 Type A & B Parts 1-4
ISO 15693
ISO 18092 NFC
MIFARE®, FeliCa

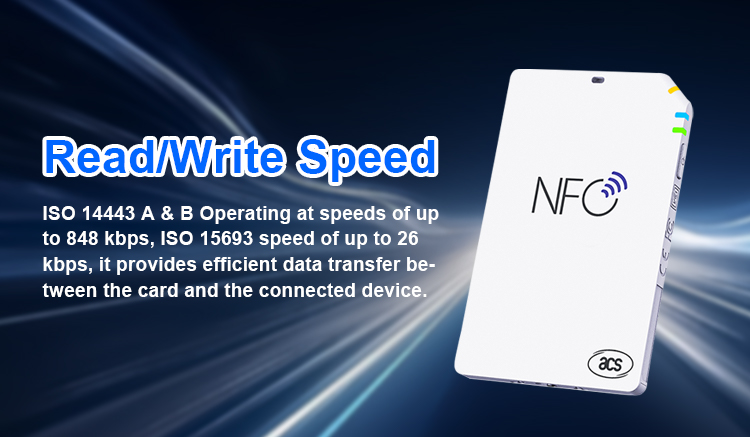

Read/Write ISO 14443 A & B speed of up to 848 kbps
Read/Write ISO 15693 speed of up to 26 kbps
Card Reader/Writer Mode
Card Emulation Mode
Support Keyboard Emulation mode
1 * ISO 7816 Standard SAM slot for improved security
Windows®, Linux®, macOS, iOS, iPadOS, Android™
Specifications:
Contactless Smart Card Interface | |

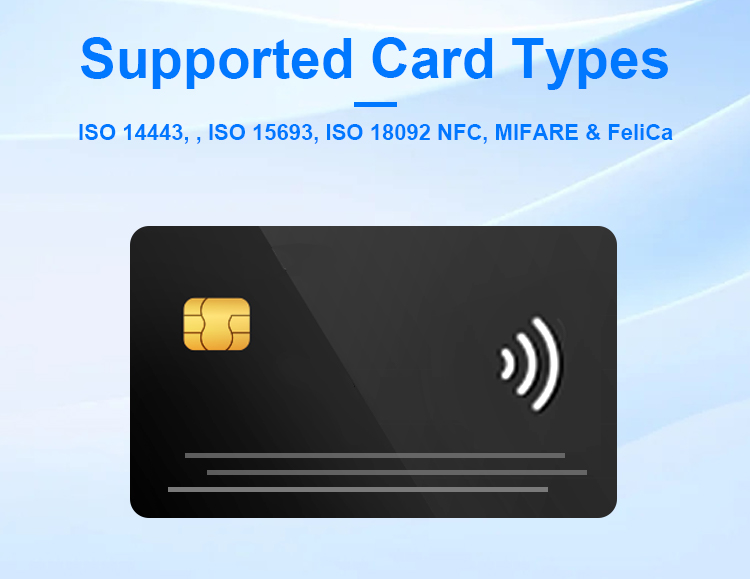

Supported Card Types | ISO 14443 Type A & B Parts 1-4, ISO 15693, ISO 18092 NFC, MIFARE® & FeliCa |
Operating Frequency | 13.56 MHz |
Reading Distance | Up to 50 mm (Depending on tag type) |
Read/Write Speed | 106/212/424/848 kbps (ISO 14443) 26/53 kbps (ISO 15693) |
Supported NFC Mode | Card Reader/Writer, Card Emulation & Keyboard Emulation |
SAM Card Interface | |
Standard | 1 * ISO 7816 Class A, B and C (5 V, 3 V, 1.8 V) Standard SIM size slot |
Read/Write Speed | Max.143 kbps |
Clock Frequency | 4.7 MHz |
Protoco | T=0, T=1 |
Bluetooth Interface | |
Protocol | Bluetooth® 5.2 |
Encryption | Bluetooth AES-128 encryption ACS Proprietary Encryption Mode |
Transmission Speed | 1 Mbps and 2 Mbps |

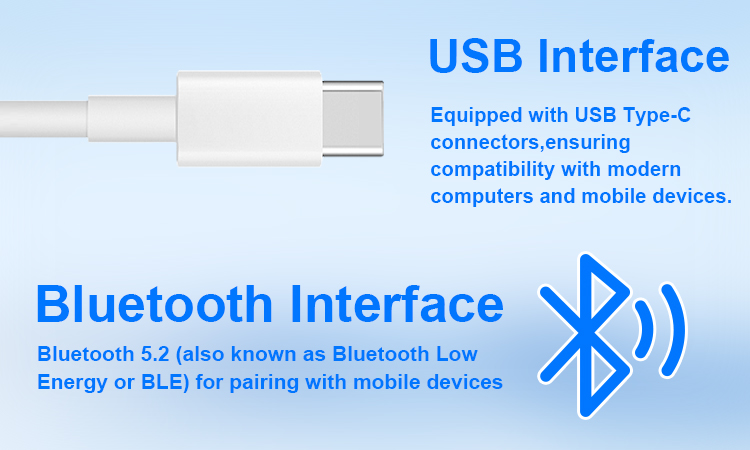

USB Interface | |
Protocol | USB CCID |
Connector Type | USB Type-C |
Transmission Speed | USB 2.0 Full Speed (12 Mbps) compatible with USB 3.0 |
Power Supply | 5 VDC (500mA Max) |
USB Firmware Upgrade | Supported |
Physical Characteristics | |

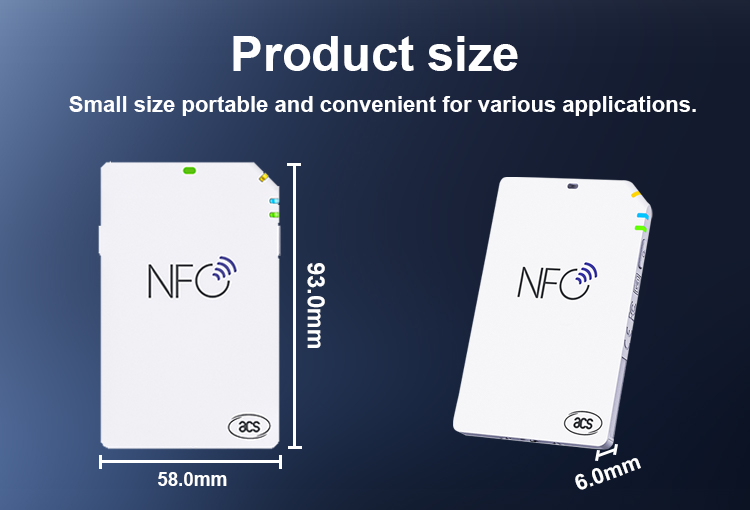

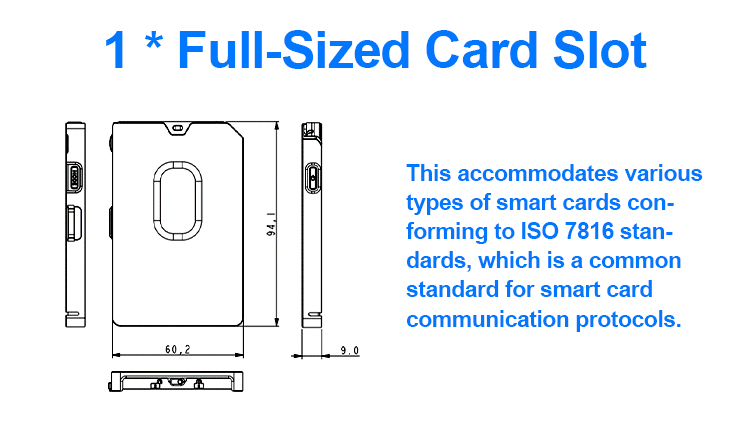

Dimension (L * W * H) | 93.0 * 58.0 * 6.0 mm 94.1 * 60.2 * 9.0 mm (with card holder) |
Weight (±5 g) | 31.0 g (Card Reader) 39.0 g (with Card holder) |
Available Colour | White |
USB Cable Length | 1 m (detachable) |
Holder | Transparency |
Buzzer | 1 * Buzzer |
LED | 1 * LED bi-Color Red and Green 1 * LED Blue 1 * LED Orange |
Button | Power on/off Mode selection |
Temperature | 0 - 60°C |
Humidity | 90% (non-condensing) |
MTBF | 400,000 Hours |
Certifications | IEC/EN 62368, CE, UKCA, FCC, VCCI, RoHS, REACH, Bluetooth® BQB, TELEC (Japan), Microsoft® WHQL, KCC (Korea) |
Battery type | Li-ion rechargeable Battery 3.7V 450mAh |
Supported OS | Windows®, Linux®, macOS, iOS, iPadOS, Android™ |
